Single Blade with Turn Table

Slab Size
Maximum slab size upto 1200mm x 3000mm
Features

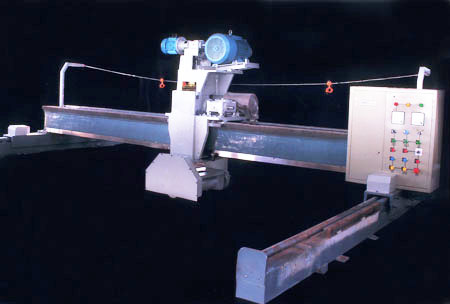

The Bridge : The Bridge is of cast iron to give strength and avoid vibrations.
•Blade : 350 / 500mm
•Motor : 7.5hp / 10hp
•Blade mounting head
•Up – Down arrangement
•Pulleys etc for blade rotation
The whole structure is supported by rollers at the ends which are connected DC drive systems for cutting movement.

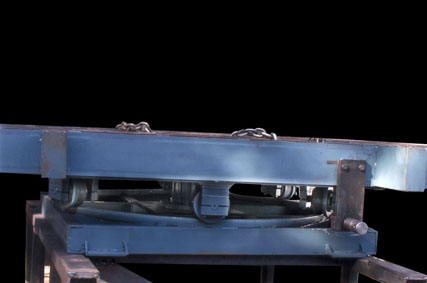

Turn Table Trolley
The Turn Table is supported by a large central bearing. In additional a support ring is also provided to avoid any tilting error. The table is also provided with stoppers at 90 to ensure accuracy.
Additional Information
•Machine Complete with main motor
•Automatic Control panel
•Additional Motor with gear box for size adjustment and bridge drive.
